PMMA Plexiglass
Quantity
Inquiry

PMMA Plexiglass

  • Product Application:

Plexiglass plate, without any coloring additives, absolutely transparent, light transmittance up to 92%. Environmental protection and thermoplasticity. The ignition temperature of the material is about 400 °C. Plexiglass has gained the ability to be used in a large temperature range of - 40 to + 90 °C and to improve its strength.

The thickness can be between 1.0mm and 120mm.

Size 1500mm * 1700mm. 1220mm * 2250mm

  • Product Parameters:
Light transmittance  94%
Rockwell hardness 97M
Thermal deformation temperature(1.8MPA) 101
Linear expansion coefficient ℃-1 7.0*10-5
Heating dimensional change (shrinkage) % 1.9
Tensile Strength Mpa 74.7
Tensile strain at break %  6.2
Tensile elastic modulus Mpa 3010
Vicat softening temperature (B50),℃ 106
Anti-solvent silver grain (4H) No silver grain
Charpy impact strength KJ/M2 21.9(C)
Thickness Model Size
2-25mm  1240*1840mm, 1250*1870mm, 1240*2440mm, 1250*2470mm, 1210*2360mm, 1320*2540mm, 1380*2620mm, 1490*2990mm, 2080*3080mm, 1850*2450mm, 1660*2600mm.
30-200mm 1200*1800mm, 1200*2400mm, 1300*2500mm, 1500*2500mm, 2500*3500mm, 2000*10000mm.

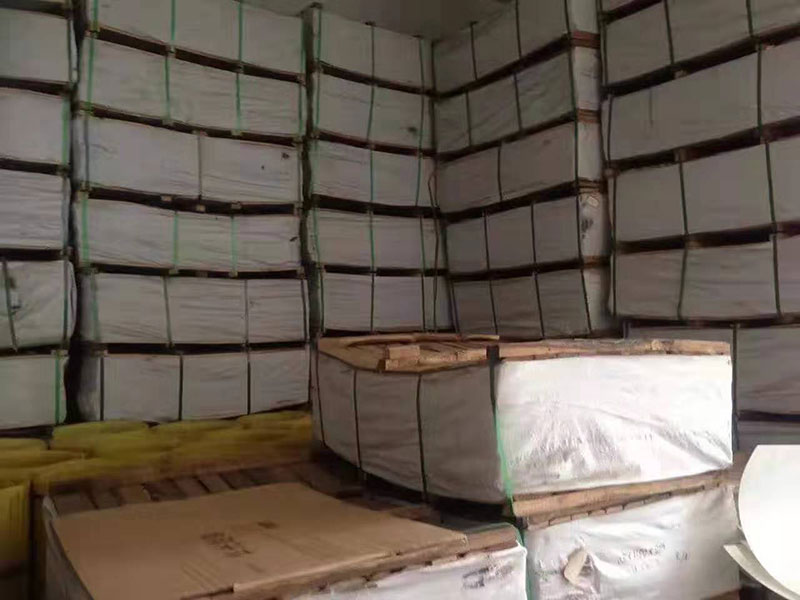

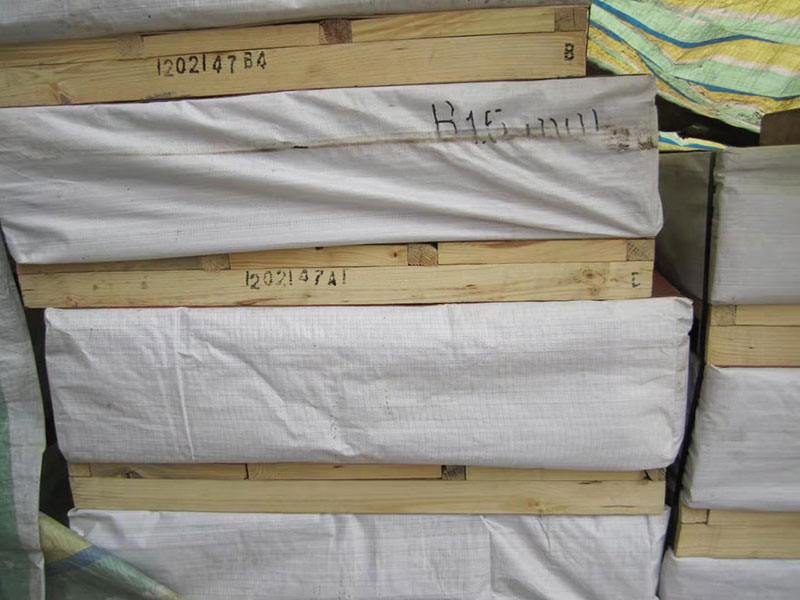

  • Packaging:
